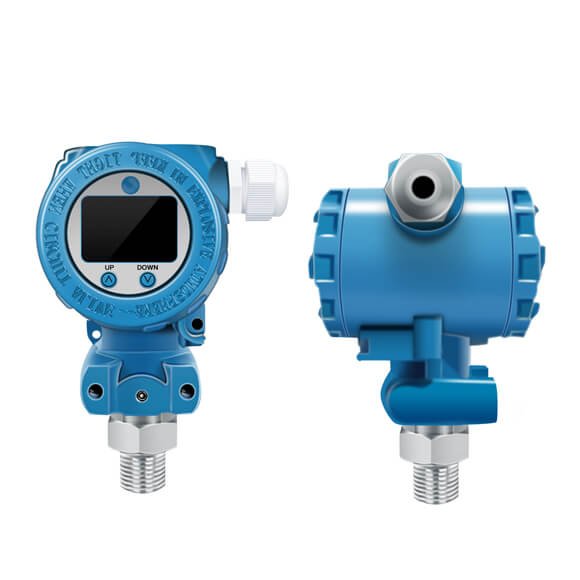

PT-2088-01

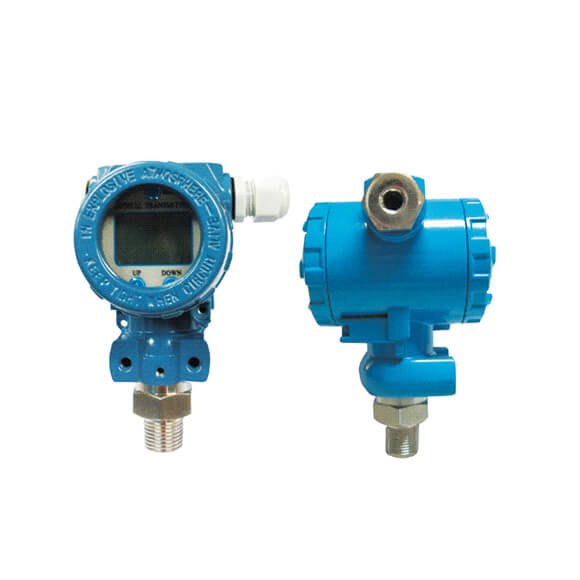

PT-2088-02

Intelligent Transmitter for Process Control

  • Range:  -0.1MPa ~ 0.1MPa ~ 60MPa
  • Output Signal:  4~20mA, HART, PS485 optional
  • Overload Pressure: 200%FS
  • Supply Voltage: 24VDC (10-36VDC)
  • Process Connection: G1/2, M20*1.5, etc., can be customized
  • Comprehensive Accuracy:  ±0.1%FS, ±0.25%FS, ±0.5%FS
  • Introduction
  • Technical data
  • Electrical connection
  • Dimensions
  • Applications

PT2088 intelligent transmitter is a high-precision intelligent instrument product developed by Shenzhen Ould Instrument Co., Ltd. based on years of scientific research and practice. The sensor of the smart transmitter is a high-precision and miniaturized smart sensor produced by using advanced foreign technology. On the conversion principle, a microprocessor is used to replace the analog signal amplification circuit and the A/D conversion circuit, and the temperature is compensated using digital compensation technology. Improve the measurement accuracy, and reduce the temperature drift. It has the characteristics of good long-term stability, high reliability, and strong self-diagnosis ability. With its extremely high performance-price ratio, it has become the mainstream product in the transmitter market.

PT-2088 Features

  • PT-2088 series intelligent transmitter is a high-precision intelligent instrument product developed by our company.
  • Changan device is a high-precision miniaturized intelligent sensor produced by using advanced foreign technology.
  • Replace analog signal amplification circuit and A/D conversion circuit by the microprocessor.
  • Use digital compensation technology to compensate temperature, improve product measurement accuracy, and reduce temperature drift.
  • It has the characteristics of good long-term stability, high reliability, and strong self-diagnosis ability.

If you are interested in our products, please contact us.

Range -0.1MPa ~ 0.1MPa ~ 60MPa
Output Signal 4~20mA, HART, PS485 optional
Overload Pressure 200%FS
Supply Voltage 24VDC (10-36VDC)
Process Connection G1/2, M20*1.5, etc., can be customized
Comprehensive Accuracy ±0.1%FS, ±0.25%FS, ±0.5%FS
Ambient Temperature -40℃~85℃ (ordinary), -40~125℃ (high temperature)
Temperature Drift ±0.03%FS/℃
Protection Class IP65

PT-2088 Installation Drawing

PT-2088-installation-drawing

PT-2088 Dimension

PT-2088-Dimensions

Intelligent transmitter used in process control.
